SQL Query Node#

The SQL Query node executes SQL SELECT queries against external databases and makes the results available to the flow. It supports MySQL, PostgreSQL, Microsoft SQL Server, and Oracle databases.

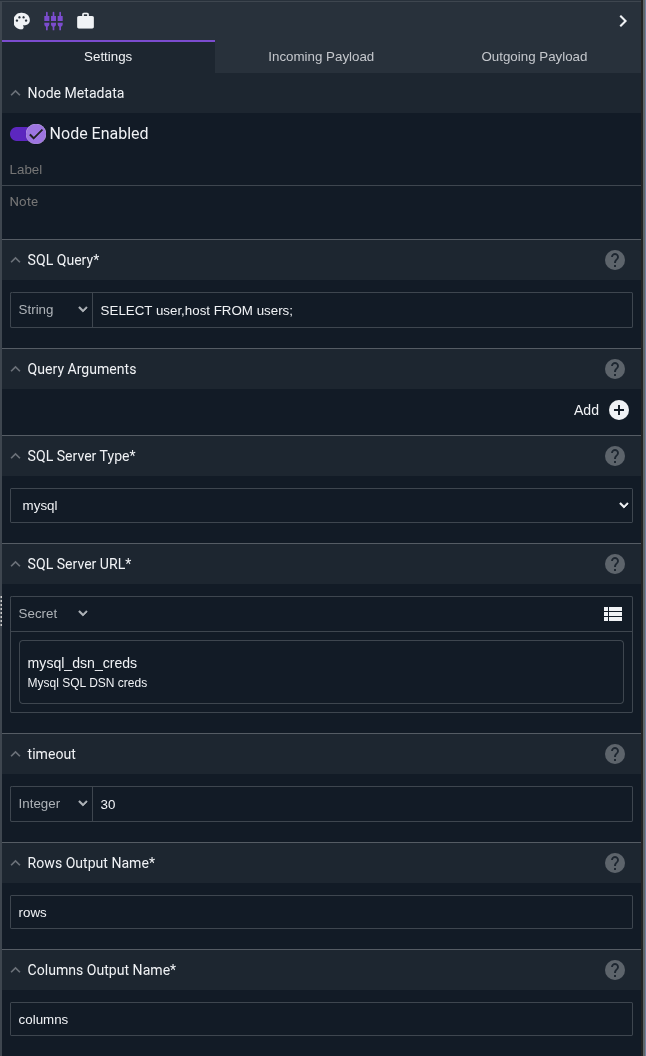

Configuration#

  • Query, required: the SQL SELECT query to execute. Can include placeholders (?) for parameterized queries.

  • Arguments: an optional array of arguments to use with parameterized queries. Each placeholder in the query will be replaced with the corresponding argument value.

  • Driver Name, required: the SQL driver to use. Must be one of:

    • mysql - MySQL/MariaDB databases

    • postgres - PostgreSQL databases

    • sqlserver - Microsoft SQL Server databases

    • oracle - Oracle databases

  • Data Source Name, required: the connection string for the database. This should typically be stored as a secret. The format varies by driver (see below).

  • Timeout: the query timeout in seconds (default: 30). Must be greater than zero.

  • Rows Output: the name of the payload variable that will receive the query results (default: “rows”).

  • Columns Output: the name of the payload variable that will receive the column names (default: “columns”).

Data Source Name Formats#

The SQL Query node uses Go’s sql.Open function to establish database connections. The Data Source Name (DSN) format varies by driver and follows the conventions of each underlying Go database driver.

Note

Data source names contain sensitive credentials and should always be stored as secrets in Gravwell rather than hardcoded in the flow configuration.

MySQL#

Driver: github.com/go-sql-driver/mysql

Basic Format:

username:password@tcp(hostname:port)/database

Examples:

Connect to local MySQL database:

dbuser:secretpass@tcp(localhost:3306)/userdb

Connect to remote MySQL server with explicit options:

appuser:mypassword@tcp(mysql.company.com:3306)/production?charset=utf8mb4&parseTime=True&loc=Local

Connect via Unix socket:

root:password@unix(/var/run/mysqld/mysqld.sock)/mysql

Common Options:

  • charset=utf8mb4 - Character set for the connection

  • parseTime=True - Parse DATE and DATETIME to Go time.Time

  • timeout=30s - Connection timeout

  • readTimeout=30s - I/O read timeout

  • writeTimeout=30s - I/O write timeout

Full documentation: go-sql-driver/mysql

PostgreSQL#

Driver: github.com/lib/pq

Basic Format (URL):

postgres://username:password@hostname:port/database?options

Basic Format (Connection String):

host=hostname port=5432 user=username password=password dbname=database sslmode=disable

Examples:

Connect to PostgreSQL with SSL disabled (local development):

postgres://postgres:mypassword@localhost:5432/analytics?sslmode=disable

Connect to PostgreSQL with SSL required (production):

postgres://pguser:securepass@db.company.com:5432/proddb?sslmode=require

Connect using connection string format:

host=postgres.company.com port=5432 user=analyst password=pass123 dbname=warehouse sslmode=verify-full

Connect with connection timeout:

postgres://dbuser:password@db.company.com:5432/mydb?sslmode=require&connect_timeout=10

Common Options:

  • sslmode=disable - No SSL (local only)

  • sslmode=require - Require SSL but don’t verify certificate

  • sslmode=verify-full - Require SSL and verify certificate

  • connect_timeout=10 - Connection timeout in seconds

  • application_name=gravwell - Set application name in PostgreSQL logs

Full documentation: lib/pq

SQL Server#

Driver: github.com/denisenkom/go-mssqldb

Basic Format:

sqlserver://username:password@hostname:port?database=dbname

Examples:

Connect to SQL Server with database name:

sqlserver://sa:YourStrong!Passw0rd@sqlserver.company.com:1433?database=UserDB

Connect with Windows authentication (integrated security):

sqlserver://DOMAIN\username:password@sqlserver.local:1433?database=Analytics

Connect with encryption and trust server certificate:

sqlserver://appuser:pass123@mssql.company.com:1433?database=Production&encrypt=true&TrustServerCertificate=true

Connect with additional options:

sqlserver://dbuser:password@sql01.company.com:1433?database=Logs&connection+timeout=30&app+name=Gravwell

Common Options:

  • database=name - Database name

  • encrypt=true - Enable encryption

  • TrustServerCertificate=true - Trust server certificate without validation

  • connection+timeout=30 - Connection timeout in seconds

  • app+name=Gravwell - Application name

Full documentation: go-mssqldb

Oracle#

Driver: github.com/sijms/go-ora

Basic Format:

oracle://username:password@hostname:port/servicename

Examples:

Connect to Oracle database with service name:

oracle://system:oracle@oracle.company.com:1521/ORCL

Connect to Oracle with SID instead of service name:

oracle://appuser:password@oracledb.local:1521/PROD?sid=PRODDB

Connect with wallet for secure authentication:

oracle://dbuser:pass@oracle-prod.company.com:1521/PRODSERV?SSL=true&SSL+Verify=false

Connect with advanced options:

oracle://analytics:password@oracle.company.com:1521/ANALYTICS?TIMEOUT=30&PREFETCH_ROWS=1000

Common Options:

  • sid=DBSID - Use SID instead of service name

  • SSL=true - Enable SSL/TLS

  • SSL+Verify=false - Skip SSL certificate verification

  • TIMEOUT=30 - Connection timeout in seconds

  • PREFETCH_ROWS=1000 - Number of rows to prefetch

Full documentation: go-ora

Storing DSN as Secrets#

To store a Data Source Name as a secret in Gravwell:

  1. Navigate to Main Menu → Secrets

  2. Click Add Secret

  3. Enter a name like mysql_userdb_dsn or postgres_analytics_dsn

  4. Paste the complete connection string as the secret value

  5. Click Save

In the SQL Query node configuration, reference the secret using the format:

secret:mysql_userdb_dsn

This keeps credentials secure and allows you to update connection strings without modifying flows.

Output#

The node sets two variables in the payload:

  • rows (or the name specified in Rows Output): a two-dimensional array containing the query results. Each element is a row, and each row is an array of column values.

  • columns (or the name specified in Columns Output): an array of strings containing the column names returned by the query.

The node does not modify other payload values.

Parameterized Queries#

For security and proper data handling, use parameterized queries rather than string concatenation. The SQL Query node uses Go’s database/sql package, which provides protection against SQL injection when using parameterized queries.

Why Use Parameterized Queries?#

Parameterized queries (also called prepared statements) offer several benefits:

  • Security: Protection against SQL injection attacks

  • Correctness: Automatic escaping of special characters

  • Type safety: Proper handling of different data types

  • Performance: Some databases can cache query plans

Placeholder Syntax by Driver#

Different database drivers use different placeholder syntax. The SQL Query node supports the following:

MySQL#

MySQL uses ? as a positional placeholder:

SELECT username, last_login, failed_attempts
FROM user_accounts
WHERE username = ? AND hostname = ?

Arguments: jsmith, webserver01.company.com

The first ? is replaced with the first argument, the second ? with the second argument, and so on.

PostgreSQL#

PostgreSQL uses $1, $2, $3, etc. as numbered placeholders:

SELECT username, email, last_login
FROM user_accounts
WHERE username = $1 AND last_login > $2

Arguments: jdoe, 2024-01-01T00:00:00Z

You can reuse the same placeholder number:

SELECT src_host, dst_host, connection_count
FROM network_logs
WHERE src_host = $1 OR dst_host = $1

Arguments: database.company.com

SQL Server#

SQL Server uses @p1, @p2, @p3, etc. as numbered placeholders:

SELECT username, department, login_time
FROM active_sessions
WHERE hostname = @p1 AND username = @p2

Arguments: workstation42, asmith

Oracle#

Oracle uses :1, :2, :3, etc. as numbered placeholders:

SELECT username, role, last_access
FROM user_permissions
WHERE username = :1 AND hostname = :2

Arguments: dbadmin, proddb01.company.com

Example: Bad vs. Good#

Bad (string concatenation - NEVER DO THIS):

SELECT * FROM user_accounts WHERE username = 'jsmith' AND hostname = 'server01'

This is vulnerable to SQL injection if the values come from user input or untrusted sources. An attacker could input '; DROP TABLE user_accounts; -- as a username.

Good (parameterized with MySQL):

SELECT * FROM user_accounts WHERE username = ? AND hostname = ?

Arguments: jsmith1, server01`

Good (parameterized with PostgreSQL):

SELECT * FROM user_accounts WHERE username = $1 AND hostname = $2

Arguments: jsmith, server01

Using Arrays as Arguments#

In the flow editor, the Arguments field accepts an array of values. You can construct this array in several ways:

  1. Hardcoded array: ["jsmith", "webserver01"]

  2. From payload variables: If you have variables username and host in the payload, reference them in the array

  3. Mixed: ["hardcoded_value", someVariable, 42]

Complex Example: User Activity Query#

PostgreSQL query checking user login activity across multiple hosts:

SELECT u.username, u.hostname, u.login_time, u.session_duration, h.ip_address
FROM user_sessions u
JOIN host_info h ON u.hostname = h.hostname
WHERE u.username = $1
  AND u.login_time > $2
  AND u.failed_attempts < $3
  AND h.hostname IN ($4, $5, $6)
ORDER BY u.login_time DESC
LIMIT $7

Arguments: jsmith, 2024-01-01T00:00:00Z, 5, web01.company.com, web02.company.com, web03.company.com, 100

This query finds recent login sessions for user “jsmith” from specific web servers, filtering out accounts with too many failed attempts.

Example: Host-Based Access Control Audit#

MySQL query to find which users have accessed specific systems:

SELECT username, hostname, access_time, access_type, resource_accessed
FROM access_logs
WHERE hostname = ?
  AND access_time BETWEEN ? AND ?
  AND access_type IN ('ssh', 'rdp', 'console')
ORDER BY access_time DESC

Arguments: proddb01.company.com, 2024-03-01 00:00:00, 2024-03-11 23:59:59

This retrieves all interactive login attempts to a production database server during a specific time range.

Warning

Never build SQL queries using string concatenation or interpolation with untrusted input. Always use parameterized queries to prevent SQL injection attacks.

Query Timeout and Connection#

The node performs the following steps:

  1. Opens a connection to the database

  2. Pings the database to verify connectivity (5-second timeout)

  3. Executes the query with the configured timeout

  4. Closes the connection

If the query takes longer than the specified timeout, it will be cancelled and the node will fail.

Example: User Audit Report#

This example queries a PostgreSQL database for recently created users, formats the results into a table, and sends a daily report via email.

The SQL Query node is configured with:

  • Driver Name: postgres

  • Data Source Name: Reference to a secret containing the PostgreSQL connection string

  • Query:

    SELECT username, email, created_at, last_login
FROM users
WHERE created_at > NOW() - INTERVAL '24 hours'
ORDER BY created_at DESC

  • Timeout: 30 seconds

  • Rows Output: user_rows

  • Columns Output: user_columns

A Text Template node then formats the results:

New Users in the Last 24 Hours:

{{range .user_rows}}
Username: {{index . 0}}
Email: {{index . 1}}
Created: {{index . 2}}
Last Login: {{index . 3}}
---
{{end}}

Total: {{len .user_rows}} new users

An Email node sends the formatted report to administrators.

Example: Inventory Check with Parameters#

This example demonstrates a parameterized query that checks inventory levels for specific product categories.

The SQL Query node is configured with:

  • Driver Name: mysql

  • Data Source Name: Reference to a secret containing the MySQL connection string

  • Query:

  SELECT product_name, quantity, warehouse_location
  FROM inventory
  WHERE category = ? AND quantity < ?
  ORDER BY quantity ASC

  • Arguments: Electronics, 10

This safely queries for electronics products with low inventory (less than 10 units) without risk of SQL injection.

Warning

Always store database credentials as secrets in Gravwell. Never hardcode passwords or connection strings directly in flow configurations.

Note

The SQL Query node only supports SELECT queries that return data. For INSERT, UPDATE, DELETE, or other non-SELECT operations, consider using other integration methods or database-specific tools.
