TrueNAS#

Integration Details

Ingester

Simple Relay

TrueNAS Configuration#

TrueNAS SCALE has native remote syslog forwarding. See Managing System Logging and Advanced Settings Screen.

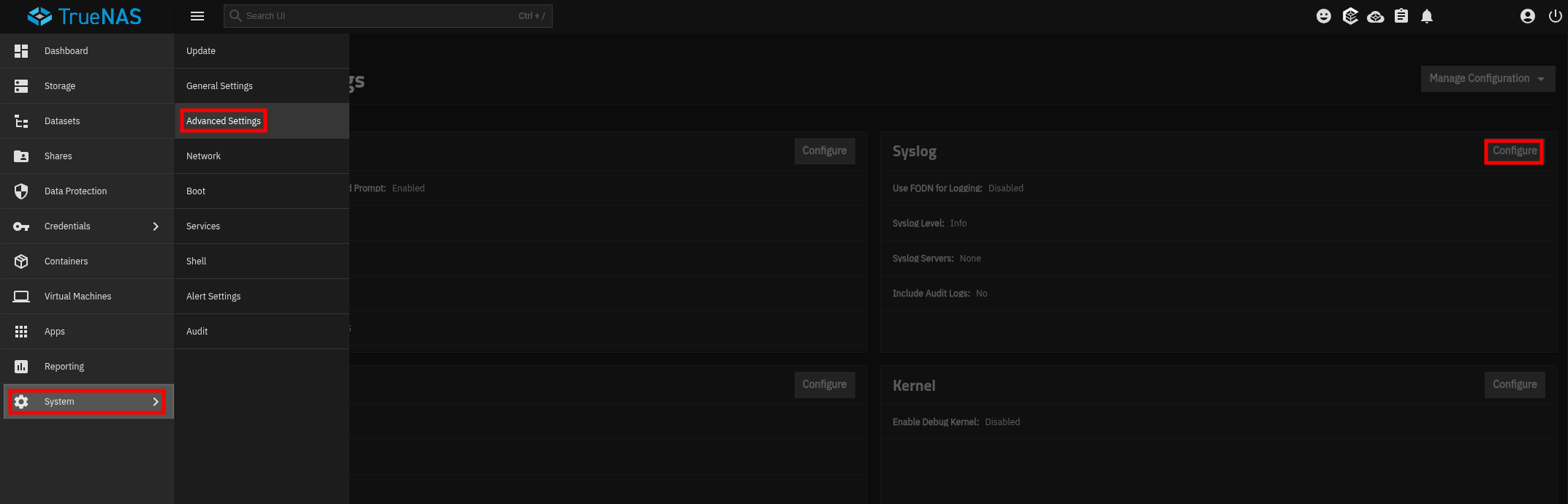

TrueNAS syslog settings

  1. Go to System Settings > Advanced > Syslog and click Configure.

  2. Set Host to your Gravwell Simple Relay address, followed by the port of the matching listener from the sample below: :15122 for UDP, :15120 for TCP, or :15121 for TLS.

  3. Set Transport to UDP, TCP, or TLS.

  4. If using TLS, import a certificate under Credentials > Certificates first, then select it here. TLS requires the TLS listener in the sample below.

  5. Set the Syslog Level (minimum severity to forward). Up to two independent remote syslog servers can be configured.

Gravwell Configuration#

Gravwell Storage Well Configuration#

Set up the well configuration in your Gravwell indexers.

Sample well config:
Create or edit: /opt/gravwell/etc/gravwell.conf.d/truenas-well.conf

[Storage-Well "truenas"]
    Location=/opt/gravwell/storage/truenas
    Tags=truenas*

Gravwell Ingester Configuration: Simple Relay#

Sample TrueNAS config:
Create or edit: /opt/gravwell/etc/simple_relay.conf.d/truenas.conf

[Listener "truenasudp"]
    Bind-String="udp://0.0.0.0:15122"
    Reader-Type=rfc5424
    Tag-Name=truenas
    Assume-Local-Timezone=true #if a time format does not have a timezone, assume local time
    Keep-Priority=true # leave the <nnn> priority tag at the start of each syslog entry

[Listener "truenastcp"]
    Bind-String="tcp://0.0.0.0:15120"
    Reader-Type=rfc5424
    Tag-Name=truenas
    Assume-Local-Timezone=true #if a time format does not have a timezone, assume local time
    Keep-Priority=true

# Only needed if you select TLS in TrueNAS. Replace the certificate and key paths with your own.
[Listener "truenastls"]
    Bind-String="tls://0.0.0.0:15121"
    Cert-File=/opt/gravwell/etc/cert.pem
    Key-File=/opt/gravwell/etc/key.pem
    Reader-Type=rfc5424
    Tag-Name=truenas
    Assume-Local-Timezone=true
    Keep-Priority=true

Note

Remember to restart the service to apply the new config: sudo systemctl restart gravwell_simple_relay.service
