GitHub#

Integration Details

Ingester

HTTP - HEC

Kit

GitHub Kit

GitHub Configuration#

[Option 1] Using Gravwell HTTP HEC Ingester#

Follow the instructions for setting up streaming to Splunk. For the configuration page point to your Gravwell HTTP ingester.

  1. Navigate to your GitHub Enterprise page.

  2. Go to: Settings > Audit Log > Log Streaming > Configure Stream > Splunk.

  3. On the configuration page you will point to the public address and port of the Gravwell Ingester.

  4. Ensure SSL verification check box is selected.

  5. Click Check endpoint to verify GitHub can connect and write to the Gravwell Ingester.

  6. Save.

If you would like to include API requests in your audit log streaming:

  1. Navigate to your GitHub Enterprise page.

  2. Go to: Settings > Audit Log > Settings > API Requests.

  3. Select Enable API Request Events.

  4. Save.

[Option 2] Using Webhooks to Export Logs#

GitHub provides webhooks for exporting logs depending on what you want to export for example for monitoring single repository, app, enterprise, global, etc. Follow the instructions for setting up:

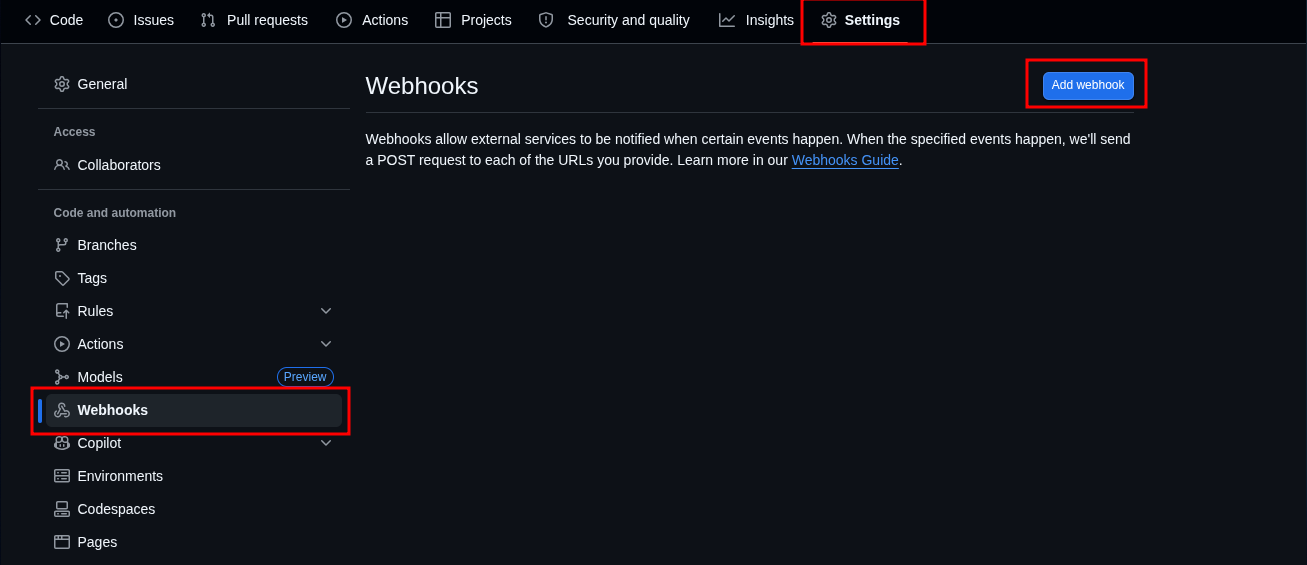

  1. On the main page of the repository select: Settings > Webhooks > Add webhook

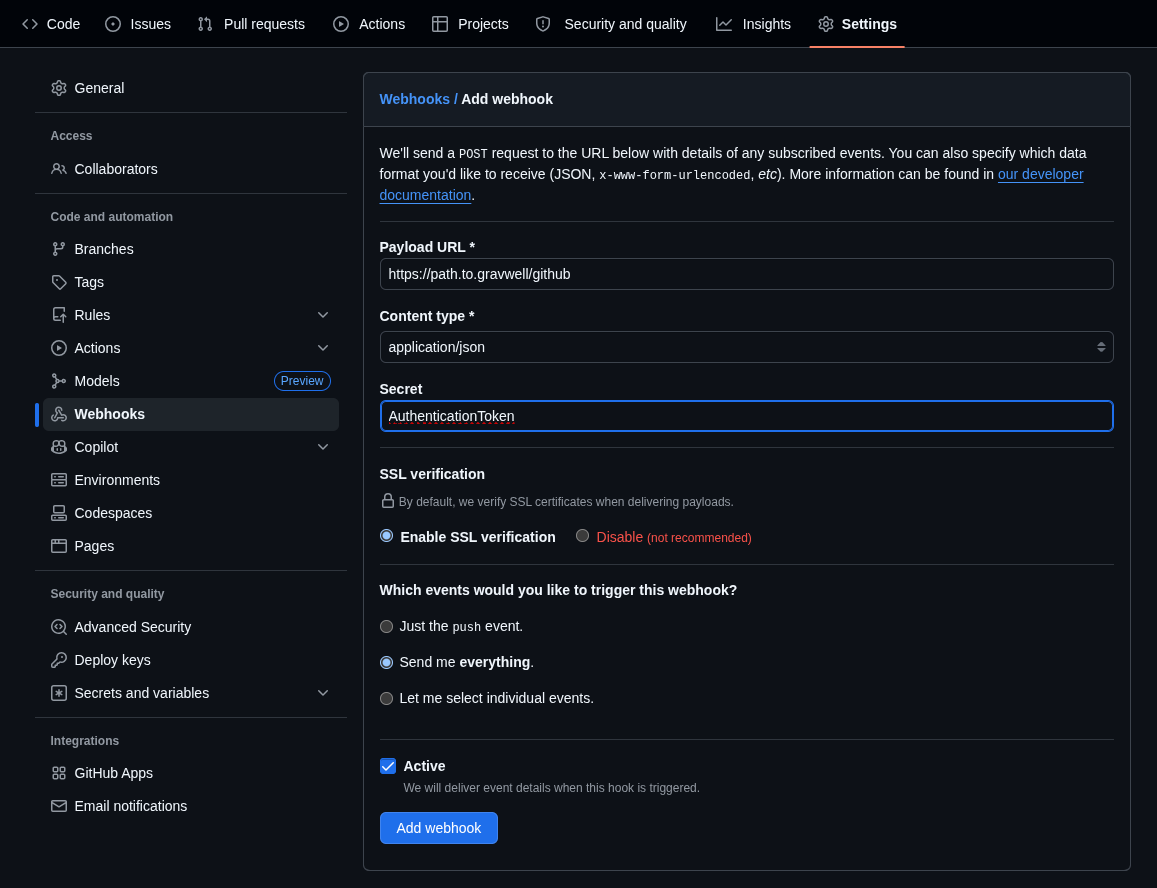

  1. Fill out the following fields:

    • Payload URL:

      • Example: https://path.to.gravwell/github

    • Content Type:

      • Example: application/json

    • Secret:

      • Example: AuthenticationToken

    • Which events would you like to trigger this webhook:

      • Example: Send me everything

Gravwell Configuration#

Gravwell Storage Well Configuration#

Setup the well configuration in your Gravwell indexers.

Sample well config:
Create or edit: /opt/gravwell/etc/gravwell.conf.d/github-well.conf

[Storage-Well "github"]
    Location=/opt/gravwell/storage/github
    Tags=github*

Gravwell Ingester Configuration: HTTP Ingester#

This guide assumes the HTTP Ingester is already installed and configured as described in HTTP Ingester Setup. Add the following to a new overlay file; you do not need a separate HTTP Ingester for this integration.

[Option 1] Using Gravwell HTTP HEC Ingester#

GitHub’s Check endpoint button validates the HEC endpoint, so enable a health check at /services/collector by setting Health-Check-URL="/services/collector" in the [Global] block of the HTTP Ingester’s base configuration file. See HTTP Ingester Setup.

Create or edit: /opt/gravwell/etc/gravwell_http_ingester.conf.d/github.conf

Sample Ingester config:

[HEC-Compatible-Listener "github"]
    URL="/services/collector"
    #TokenValue="AuthenticationToken"
    Tag-Match=github:github
    Tag-Match=github-audit:github_audit

[Option 2] Using Webhooks#

Create or edit: /opt/gravwell/etc/gravwell_http_ingester.conf.d/github.conf Sample Ingester config:

[Listener "github"]
    URL="/github"
    #TokenValue= "AuthenticationToken"
    Tag-Name=github

Note

Remember to restart the service to apply the new config: sudo systemctl restart gravwell_http_ingester.service
