Corelight Logs#

Integration Details

Ingester

Simple Relay

Preprocessor

Corelight JSON to TSV

Kit

Gravell Corelight

Corelight Configuration#

Follow these steps to export logs from your Corelight sensor to the Gravwell Ingester.

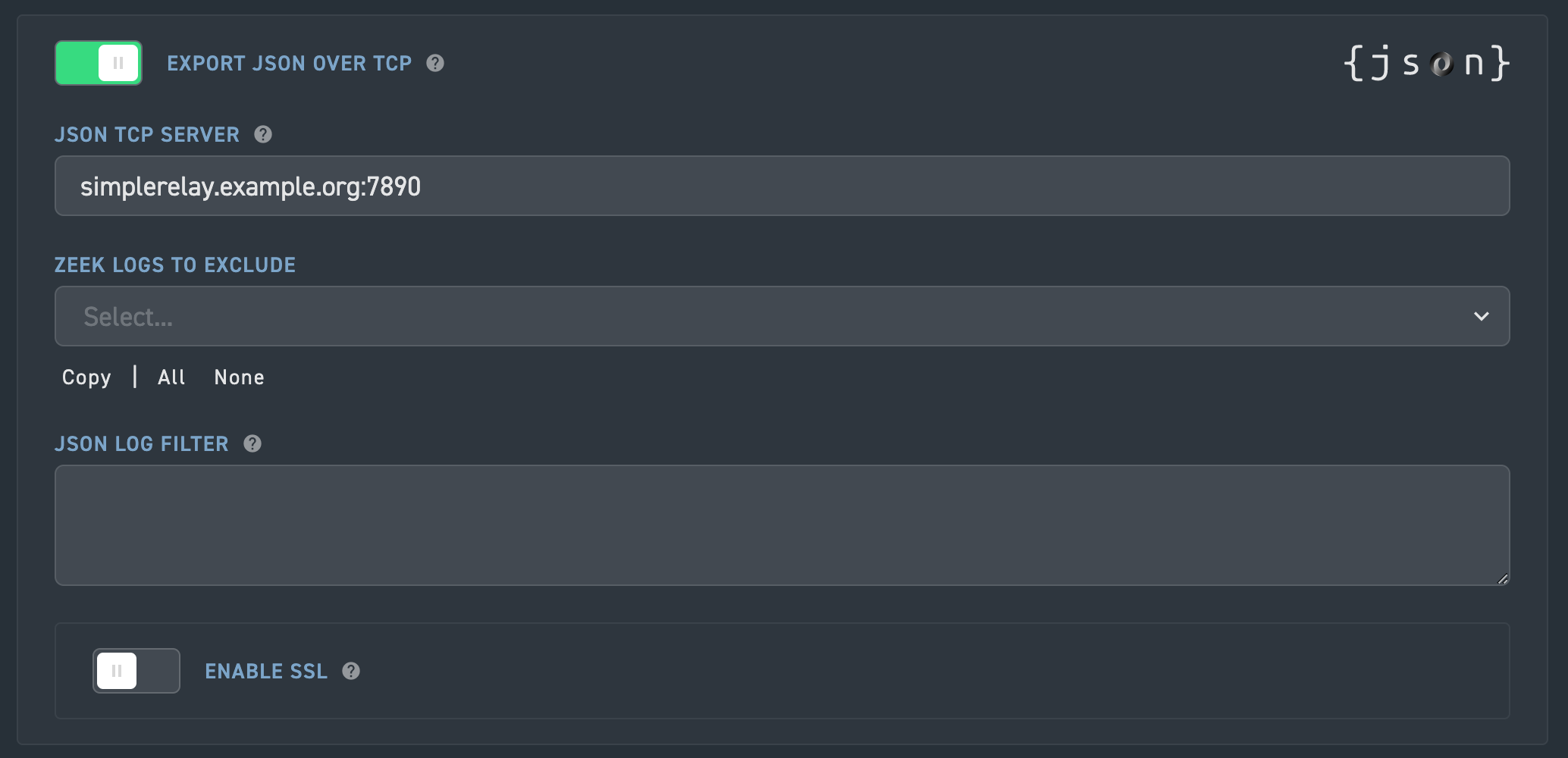

[Option 1] Web GUI#

  • Navigate to the Sensor > Export tab.

  • Enable the EXPORT JSON OVER TCP Slider

  • Enter the IP address and Port


[Option 2] CLI#

Run the following command to update the configuration:

corelight-client configuration update --export.json_tcp.enable true --export.json_tcp.destination <IP>:<PORT>

[Option 3] Setting up Corelight@Home to export logs to Gravwell#

Edit the configuration file at: /etc/corelight-softsensor.conf

# Definen the capture interface
Corelight::sniff    eth0

# EnableJSON over TCP export
Corelight::json_enable  T
# Target IP and Port of your Gravwell ingester
Corelight::json_server  192.168.0.10:7890

Restart Service with:
systemctl restart corelight-softsensor

Gravwell Configuration#

Gravwell Storage Well Configuration#

Corelight generates highly orthogonal data (UUIDs, floating-point timestamps, IPv6). To optimize indexing performance and memory usage, we recommend a dedicated well with specific indexing flags.

Recommend Engine: Bloom or Index Crucial Flags: ignroeFloat and ignoreUUID to reduce index bloat.

Sample well config:
Create or edit: /opt/gravwell/etc/gravwell.conf.d/corelight.well

[Storage-Well "corelight"]
    Location=/opt/gravwell/storage/corelight
    Tags=corelight*
    Accelerator-Name=fulltext
    Accelerator-Args="-ignoreFloat -ignoreUUID"

Gravwell Simple Relay Ingester Configuration#

We recommend using the Simple Relay ingester. The following configuration listens on port 7890, extracts the _path field from the JSON payload, and dynamically routes data to descriptive tags.

Note

Ensure your firewalls allows traffic on port 7890 between the Corelight sensor and the Gravwell ingester.

Gravwell JSON Listener Configuration#

File: /opt/gravwell/etc/simple_relay.conf.d/corelight.conf

[JSONListener "corelight"]
    Bind-String="0.0.0.0:7890"
    Default-Tag=corelight
    Extractor="_path"
    Tag-Match=bacnet:corelight_bacnet
    Tag-Match=capture_loss:corelight_capture_loss
    Tag-Match=cip:corelight_cip
    Tag-Match=conn:corelight_conn
    Tag-Match=conn_long:corelight_conn_long
    Tag-Match=conn_red:corelight_conn_red
    Tag-Match=corelight_burst:corelight_burst
    Tag-Match=corelight_overall_capture_loss:corelight_overall_capture_loss
    Tag-Match=corelight_profiling:corelight_profiling
    Tag-Match=datared:corelight_datared
    Tag-Match=dce_rpc:corelight_dce_rpc
    Tag-Match=dga:corelight_dga
    Tag-Match=dhcp:corelight_dhcp
    Tag-Match=dnp3:corelight_dnp3
    Tag-Match=dns:corelight_dns
    Tag-Match=dns_red:corelight_dns_red
    Tag-Match=dpd:corelight_dpd
    Tag-Match=encrypted_dns:corelight_encrypted_dns
    Tag-Match=enip:corelight_enip
    Tag-Match=enip_debug:corelight_enip_debug
    Tag-Match=enip_list_identity:corelight_enip_list_identity
    Tag-Match=etc_viz:corelight_etc_viz
    Tag-Match=files:corelight_files
    Tag-Match=files_red:corelight_files_red
    Tag-Match=ftp:corelight_ftp
    Tag-Match=generic_dns_tunnels:corelight_generic_dns_tunnels
    Tag-Match=generic_icmp_tunnels:corelight_generic_icmp_tunnels
    Tag-Match=http:corelight_http
    Tag-Match=http2:corelight_http2
    Tag-Match=http_red:corelight_http_red
    Tag-Match=icmp_specific_tunnels:corelight_icmp_specific_tunnels
    Tag-Match=intel:corelight_intel
    Tag-Match=ipsec:corelight_ipsec
    Tag-Match=irc:corelight_irc
    Tag-Match=iso_cotp:corelight_iso_cotp
    Tag-Match=kerberos:corelight_kerberos
    Tag-Match=known_certs:corelight_known_certs
    Tag-Match=known_devices:corelight_known_devices
    Tag-Match=known_domains:corelight_known_domains
    Tag-Match=known_hosts:corelight_known_hosts
    Tag-Match=known_names:corelight_known_names
    Tag-Match=known_remotes:corelight_known_remotes
    Tag-Match=known_services:corelight_known_services
    Tag-Match=known_users:corelight_known_users
    Tag-Match=local_subnets:corelight_local_subnets
    Tag-Match=local_subnets_dj:corelight_local_subnets_dj
    Tag-Match=local_subnets_graphs:corelight_local_subnets_graphs
    Tag-Match=log4shell:corelight_log4shell
    Tag-Match=modbus:corelight_modbus
    Tag-Match=mqtt_connect:corelight_mqtt_connect
    Tag-Match=mqtt_publish:corelight_mqtt_publish
    Tag-Match=mqtt_subscribe:corelight_mqtt_subscribe
    Tag-Match=mysql:corelight_mysql
    Tag-Match=notice:corelight_notice
    Tag-Match=ntlm:corelight_ntlm
    Tag-Match=ntp:corelight_ntp
    Tag-Match=ocsp:corelight_ocsp
    Tag-Match=openflow:corelight_openflow
    Tag-Match=packet_filter:corelight_packet_filter
    Tag-Match=pe:corelight_pe
    Tag-Match=profinet:corelight_profinet
    Tag-Match=profinet_dce_rpc:corelight_profinet_dce_rpc
    Tag-Match=profinet_debug:corelight_profinet_debug
    Tag-Match=radius:corelight_radius
    Tag-Match=rdp:corelight_rdp
    Tag-Match=reporter:corelight_reporter
    Tag-Match=rfb:corelight_rfb
    Tag-Match=s7comm:corelight_s7comm
    Tag-Match=signatures:corelight_signatures
    Tag-Match=sip:corelight_sip
    Tag-Match=smartpcap:corelight_smartpcap
    Tag-Match=smartpcap-stats:corelight_smartpcap-stats
    Tag-Match=smb_files:corelight_smb_files
    Tag-Match=smb_mapping:corelight_smb_mapping
    Tag-Match=smtp:corelight_smtp
    Tag-Match=smtp_links:corelight_smtp_links
    Tag-Match=snmp:corelight_snmp
    Tag-Match=socks:corelight_socks
    Tag-Match=software:corelight_software
    Tag-Match=specific_dns_tunnels:corelight_specific_dns_tunnels
    Tag-Match=ssh:corelight_ssh
    Tag-Match=ssl:corelight_ssl
    Tag-Match=ssl_red:corelight_ssl_red
    Tag-Match=stats:corelight_stats
    Tag-Match=stepping:corelight_stepping
    Tag-Match=stun:corelight_stun
    Tag-Match=stun_nat:corelight_stun_nat
    Tag-Match=suricata_corelight:corelight_suricata_corelight
    Tag-Match=suricata_eve:corelight_suricata_eve
    Tag-Match=suricata_stats:corelight_suricata_stats
    Tag-Match=suricata_zeek_stats:corelight_suricata_zeek_stats
    Tag-Match=syslog:corelight_syslog
    Tag-Match=tds:corelight_tds
    Tag-Match=tds_rpc:corelight_tds_rpc
    Tag-Match=tds_sql_batch:corelight_tds_sql_batch
    Tag-Match=traceroute:corelight_traceroute
    Tag-Match=tunnel:corelight_tunnel
    Tag-Match=unknown-smartpcap:corelight_unknown-smartpcap
    Tag-Match=util_stats:corelight_util_stats
    Tag-Match=vpn:corelight_vpn
    Tag-Match=weird:corelight_weird
    Tag-Match=weird_red:corelight_weird_red
    Tag-Match=weird_stats:corelight_weird_stats
    Tag-Match=wireguard:corelight_wireguard
    Tag-Match=x509:corelight_x509
    Tag-Match=x509_red:corelight_x509_red
    Tag-Match=zeek_doctor:corelight_zeek_doctor
